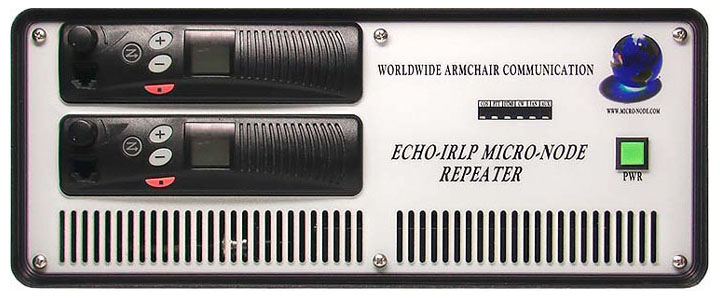

The Micro-Node repeater is a fully integrated IRLP/Echolink full
duplex repeater. Just add an antenna, internet connection and a 12vdc power source and you will be on the air and talking

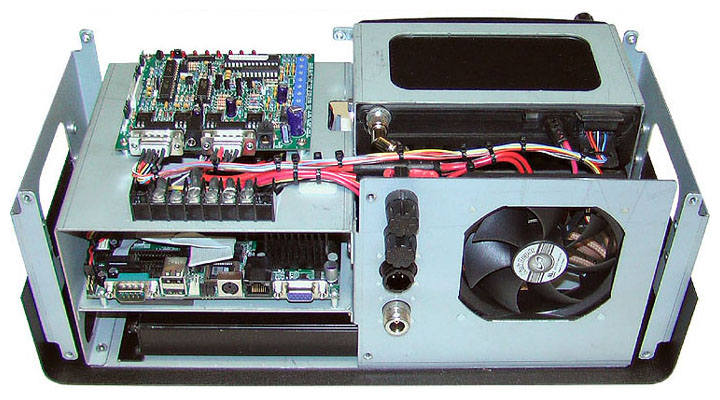

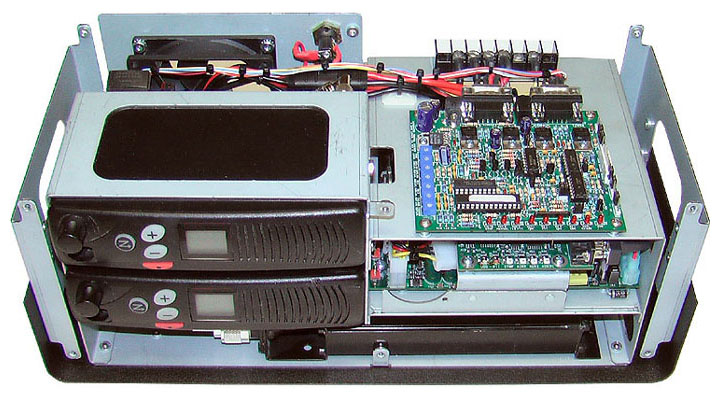

worldwide in minutes. The package includes two commercial grade 10-25 watt programmable UHF radios, a six cavity 50 watt duplexer
and the ICS Linker II controller. All this in a compact package measuring just 15.0” (381mm) W x 7.5 (190mm) L x 6.0 (152mm) H.
MN-3000 ($1895) Micro-Node Full Duplex Repeater with 2 Channel Radio
installed
MN-3100 ($1995) Micro-Node Full Duplex Repeater with 16 Channel Radio
installed
| Micro-Node Commercial Radio Specifications |
| |
UHF |
| Frequency |
440-470 MHz |
| Channels |
2 or 16 |
| Size |
1.73" x 6.61" x 4.25" |
| Power Output |
10-25W |
| Channel Spacing |
20/25/30 kHz
12.5 kHz |
| Sensitivity (12dB SINAD) |
|
| 20/25/30 kHz |
.30µV |
| 12.5 kHz |
.35µV |
|
